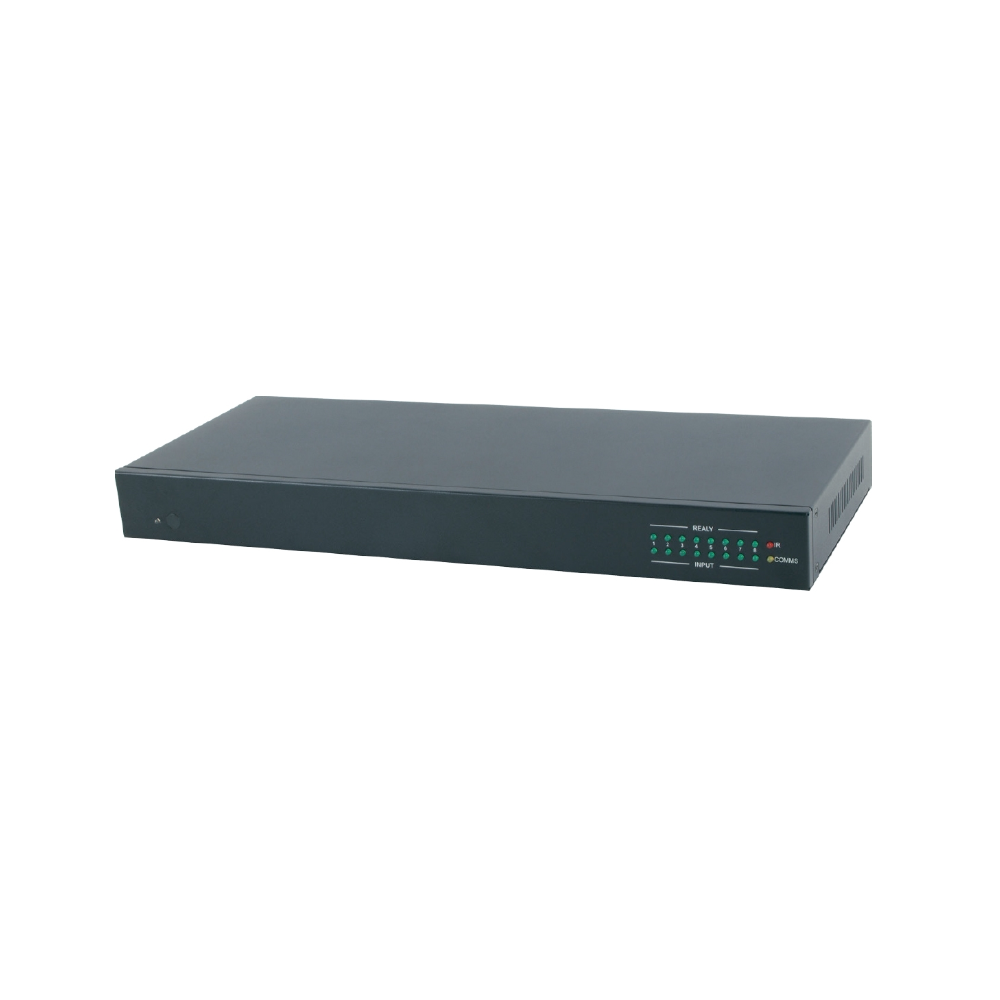

As we enter a new era of smart devices, the dream of controlling everything with one
finger is finally upon us. This Control System Center allows those dreams to come true by
not only providing direct but also indirect control interfaces for all of your devices. Direct
control methods such as IR (with IR learning), RS-232, relay, and DC triggers allow users
to maintain traditional styles of control over devices while indirect device control is possible
using telnet allowing users to control newer, more complicated devices. With this product
you can pre-program and recall up to 16 distinct macros (8 can be directly activated via
external triggers or IR remote) providing for complete control over your audio and video
environment.
- Supports 1 IR Learning input, 8 IR Blaster outputs, 8 Trigger inputs, 8 Relay outputs, 2 COM ports, and 4 Ethernet ports
- Supports an IR learning function which captures the IR signal broadcast by your remote when you press a button for retransmission as a part of a macro
- Supports trigger inputs with a voltage range of 0~15V (triggers at 5V)
- Supports Baud rates from 4800bps to 115200bps
- Supports 10/100 Ethernet network connections
Inputs
- 1x 3.5mm Stereo Mini-jack [1x IRL (IR Learning) Infrared Receiver]
- 8x 2-Pin Terminal Block [8x Trigger]
- 1x USB Type A [1x SERVICE Propriety Data]
Outputs
- 8x 3.5mm Stereo Mini-jack [8x Infrared Emitter]
- 2x 9-pin D-sub [2x RS-232 Data]
- 8x 2-Pin Terminal Block [8x Relay]
- 4x RJ45 [4x IP Control]
PSU:
Dimensions
- 432mm [W] x 181mm [D] x 49mm [H]
Net Weight
• 1×Control System Center
• 1×Remote Control (CR-157)
• 1×IR Learner Cable
• 4×IR Extender Cables
• 4×IR Blaster Cables
• 4×Terminal Block Connectors
• 1×5V/2.6A Power Adaptor
• 1×Rack Mount Ears (Set of 2)
• 1×Operation Manual
